Graphing with {ggplot2}

IOC-R Week 5

Plan

• Recap Week 4
• R Packages
• Graphing with {ggplot2}
• Let’s Practice !

Recap Week 4

Brief Recap Week 4

• Operators
  • Logical: &, |, !, return TRUE or FALSE.
  • Comparison: ==, !=, <, <=, >, >=.
  • The %in%: check membership

What does the following code do?

(2.1 > 1) & (0.049 > 0.05)
(2.1 > 1) | (0.049 > 0.05)

# df is a data frame,
# one of the columns is called "pvalue"
df[df$pvalue < 0.05, ]

"a" %in% c("c", "ba")

• Conditions
  • statements: if, if…else
  • ifelse() function

What does the following code do?

if (lfc > 2 & pvalue < 0.05 ) {
  print("gene of interest")
} else {
  print("gene to remove")
}

Brief Recap Week 4

• Functions

## syntax
my_function <- function(arg1, arg2) {
  # code
  return(result)
}

Based on the following code:

• what will you get when calling times_three(2)?
• What will you get if you type time_factor in the console?

times_three <- function(number) {
  time_factor <- 3
  res <- number * time_factor
  return(res)
}
times_three(2)
time_factor

R Packages

What are Packages in R?

Packages are collections of functions, data, and documentation.

• Pre-installed packages: {base}, {utils}, {graphics}, etc.

dim() # from {base}
head() # from {utils}
plot() # from {graphics}

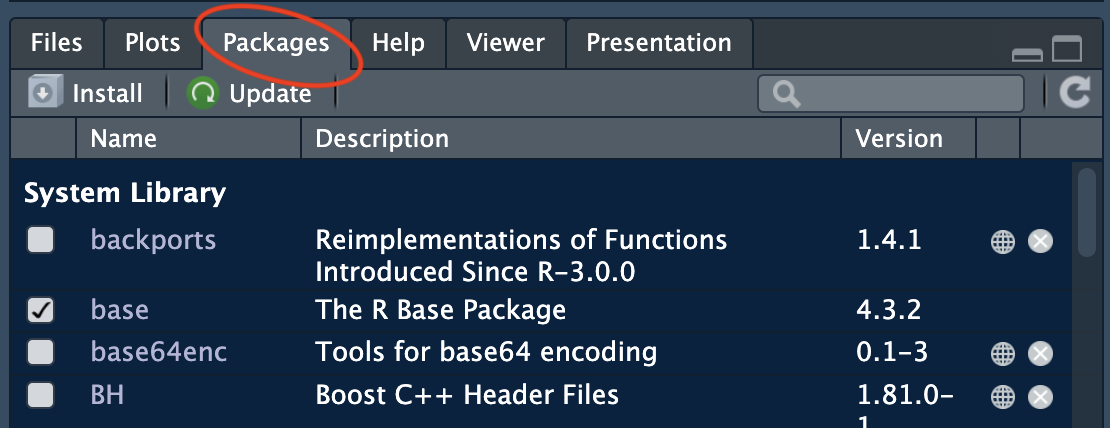

To check the list of installed packages in RStudio:

name, description, can delete a pkg here

Installing Packages

By default, R will install the lastest version of a package.

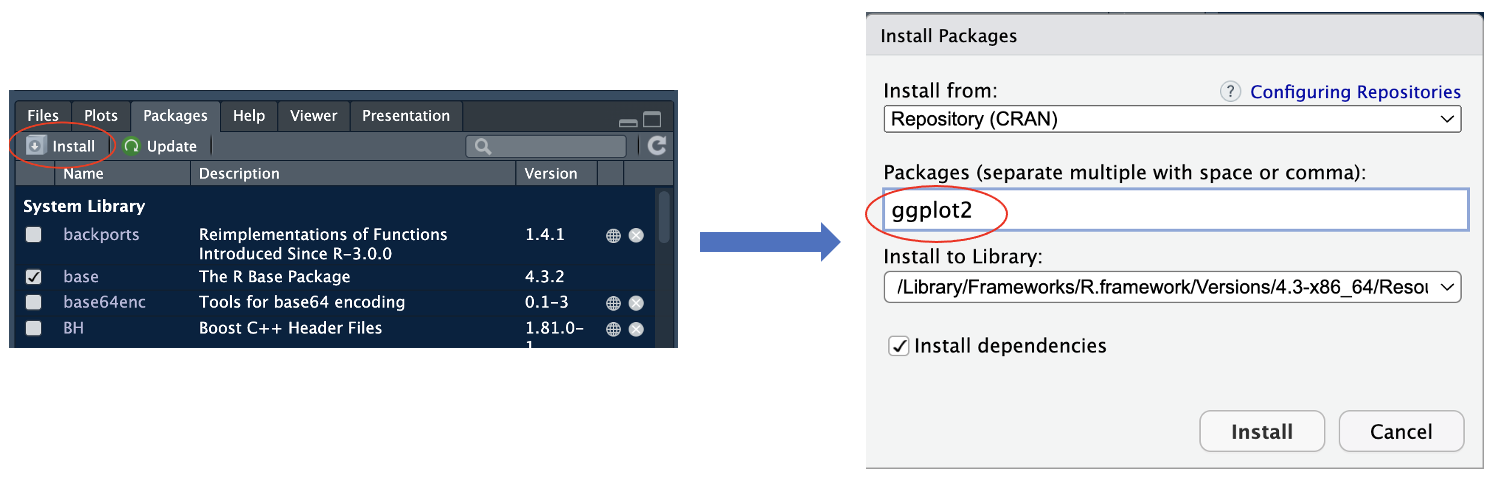

• Click-button way:

• Via command, i.e., install.packages("ggplot2")

• CRAN (Comprehensive R Archive Network) is a network of servers around the world that store identical, up-to-date, versions of code and documentation for R.
• Bioconductor is a specialized repository like CRAN, but focused on bioinformatics. It provides R packages for analyzing genomic and biological data.

Only need install once for the system, the load the package.

Management of Packages

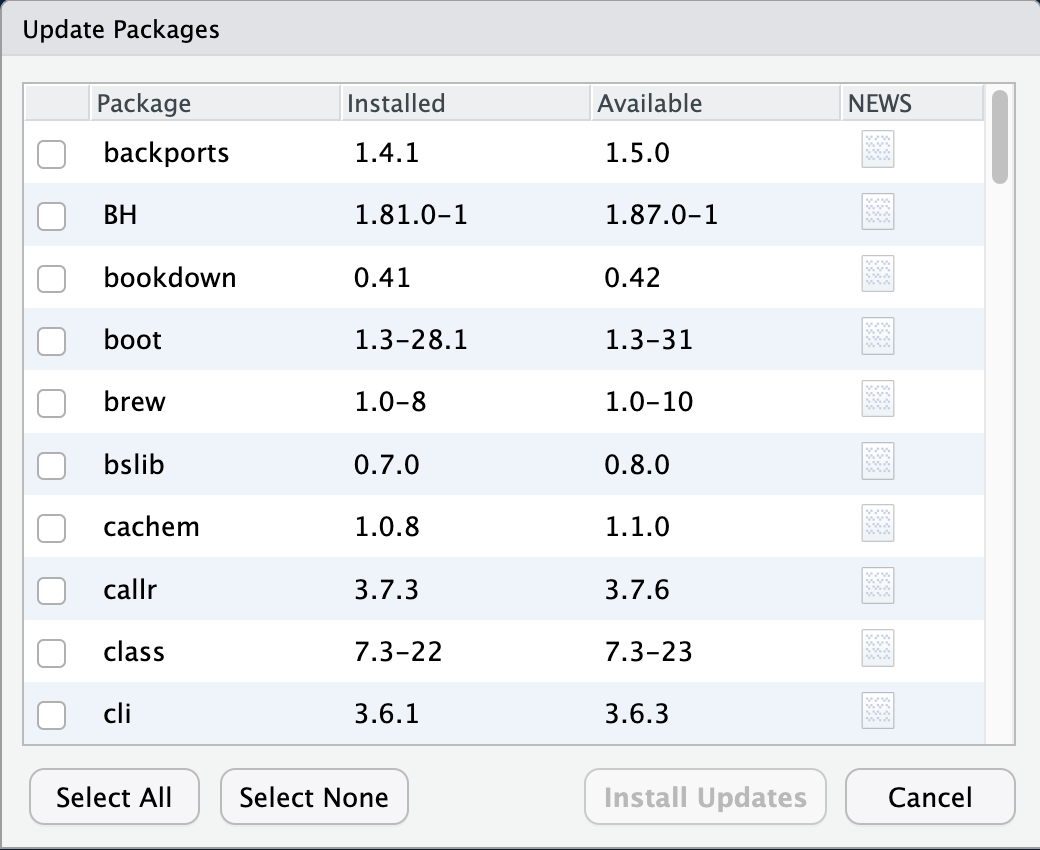

• Update: click on the and a popup will show you packages that can be updated.

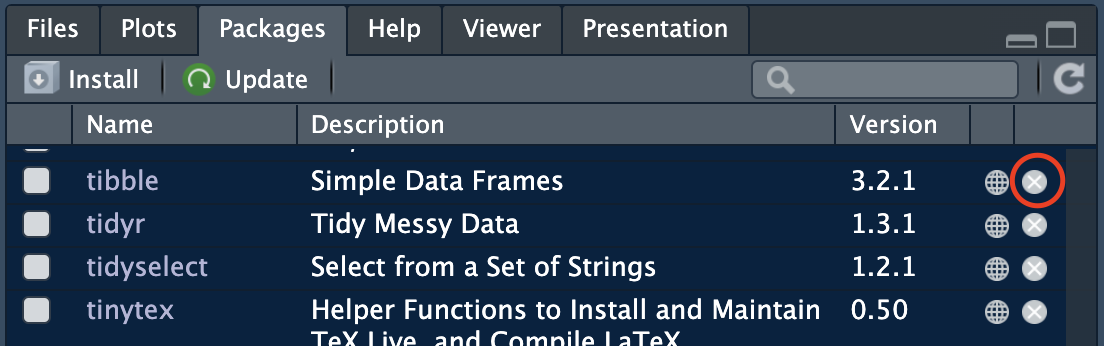

• Delete: click on the delete buttom after the package

Or use remove.packages("tibble").

We’ll talk about packages’ version management via the renv package in session 6 if time allowed.

Using Functions of Package

To use (call) a function from a package, we can either:

• load the entire package (attach it to the environment)

library(ggplot2) # load the package
ggplot() # call the function to iniate a ggplot

A loaded package will be checked in the “Packages” panel.

You only need to load a package once per R session.

However, if you’re running your script in a non-interactive way, make sure to include the library() calls in your script, ideally at the beginning.

• or load one function of the package at the time with the syntax pkg_name::fct_name

ggplot2::ggplot()

This way is recommanded if you need to use only one function of a package.

Graphing with {ggplot2}

Before Plotting …

What message you want to show via your figure?

flowchart LR
  A{Which variables?} --> B{Data properties}
  B --> C{Figure type}

Check out these websites: from Data to Viz and The R Graph Gallery (by Yan Holtz)

• What are the variables to be visualized?
• Data properties: continuous, discrete, categorical?
• Figure type: dots plot, boxplot, histogram, etc.

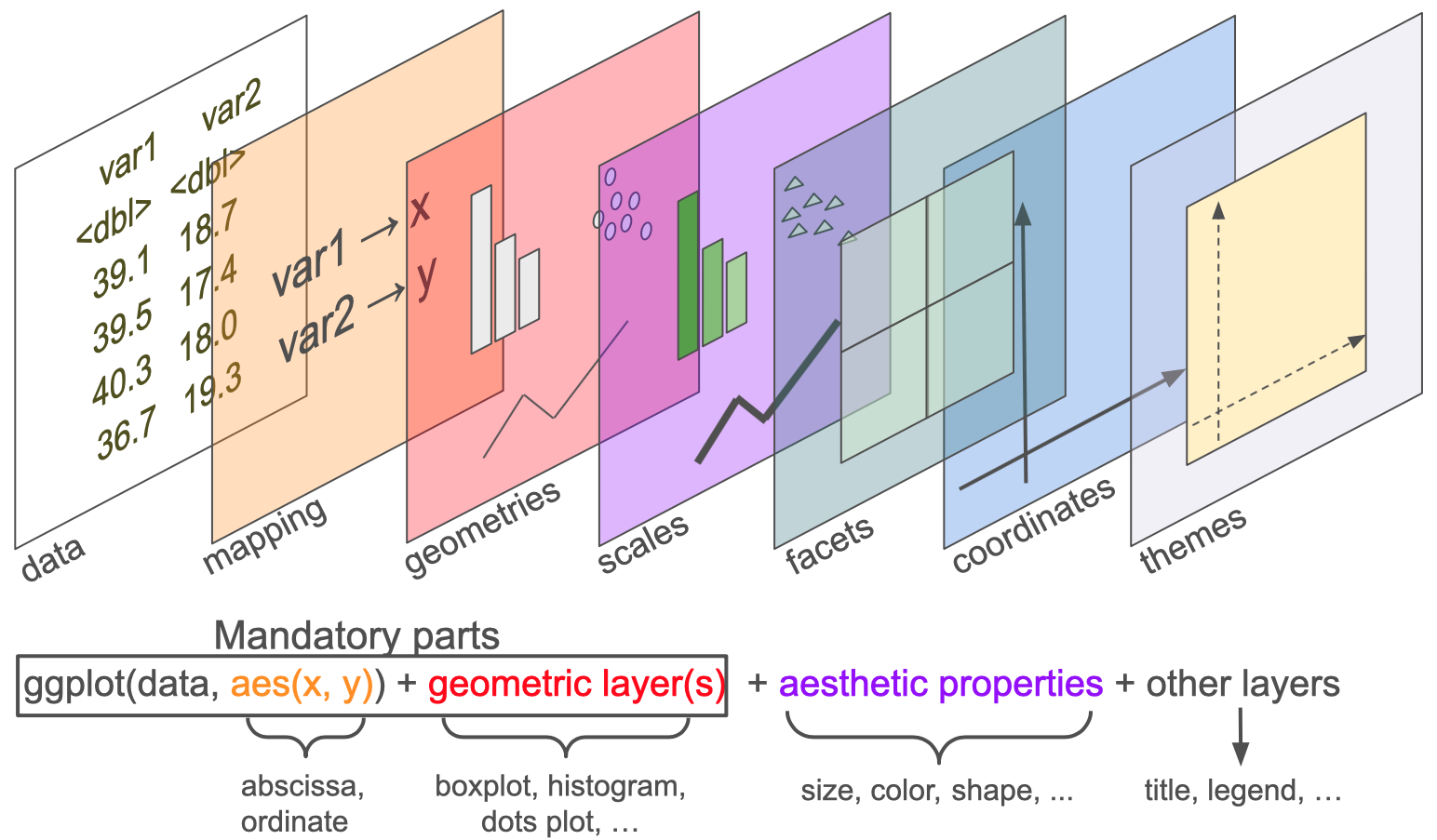

Compositions of a ggplot

(Figure adpated from QCBS R Workshop Series.)

How to Build a ggplot

All ggplot2 plots begin with a call to ggplot(), supplying default data and aesthethic mappings, specified by aes(). You Then add layers, scales, coords and facets with +. —— ggplot2 Reference

Example using the built-in dataset iris:

str(iris) # data overview

'data.frame':   150 obs. of  5 variables:
 $ Sepal.Length: num  5.1 4.9 4.7 4.6 5 5.4 4.6 5 4.4 4.9 ...
 $ Sepal.Width : num  3.5 3 3.2 3.1 3.6 3.9 3.4 3.4 2.9 3.1 ...
 $ Petal.Length: num  1.4 1.4 1.3 1.5 1.4 1.7 1.4 1.5 1.4 1.5 ...
 $ Petal.Width : num  0.2 0.2 0.2 0.2 0.2 0.4 0.3 0.2 0.2 0.1 ...
 $ Species     : Factor w/ 3 levels "setosa","versicolor",..: 1 1 1 1 1 1 1 1 1 1 ...

Basic Plot

library("ggplot2") # load package

Start by calling ggplot():

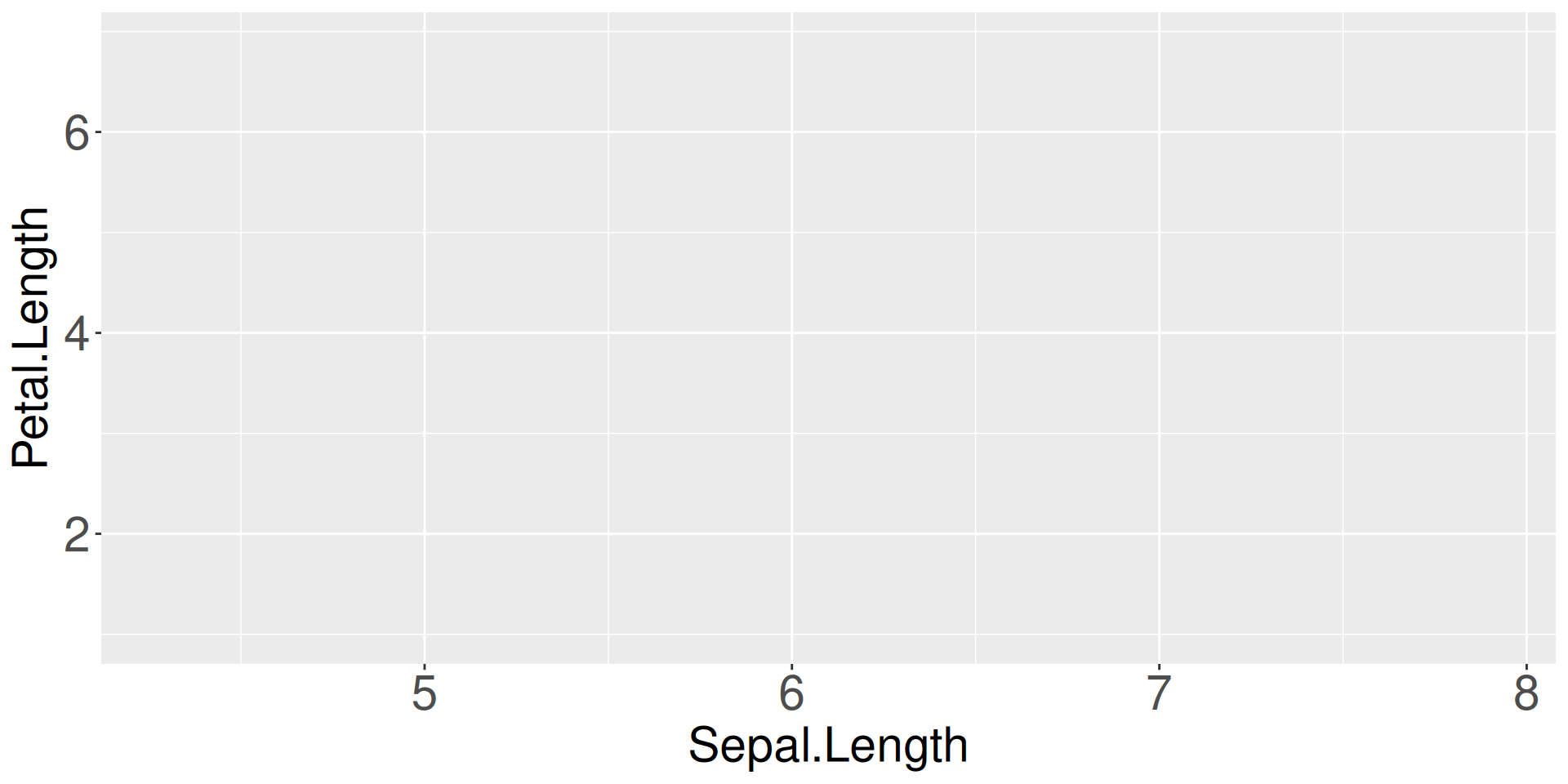

p0 <- ggplot(
  data = iris, # a data frame
  mapping = aes(x = Sepal.Length, y = Petal.Length)
)
p0

Specify data, x and y axes.

The data should be a data frame containing both variables needed for the plot.

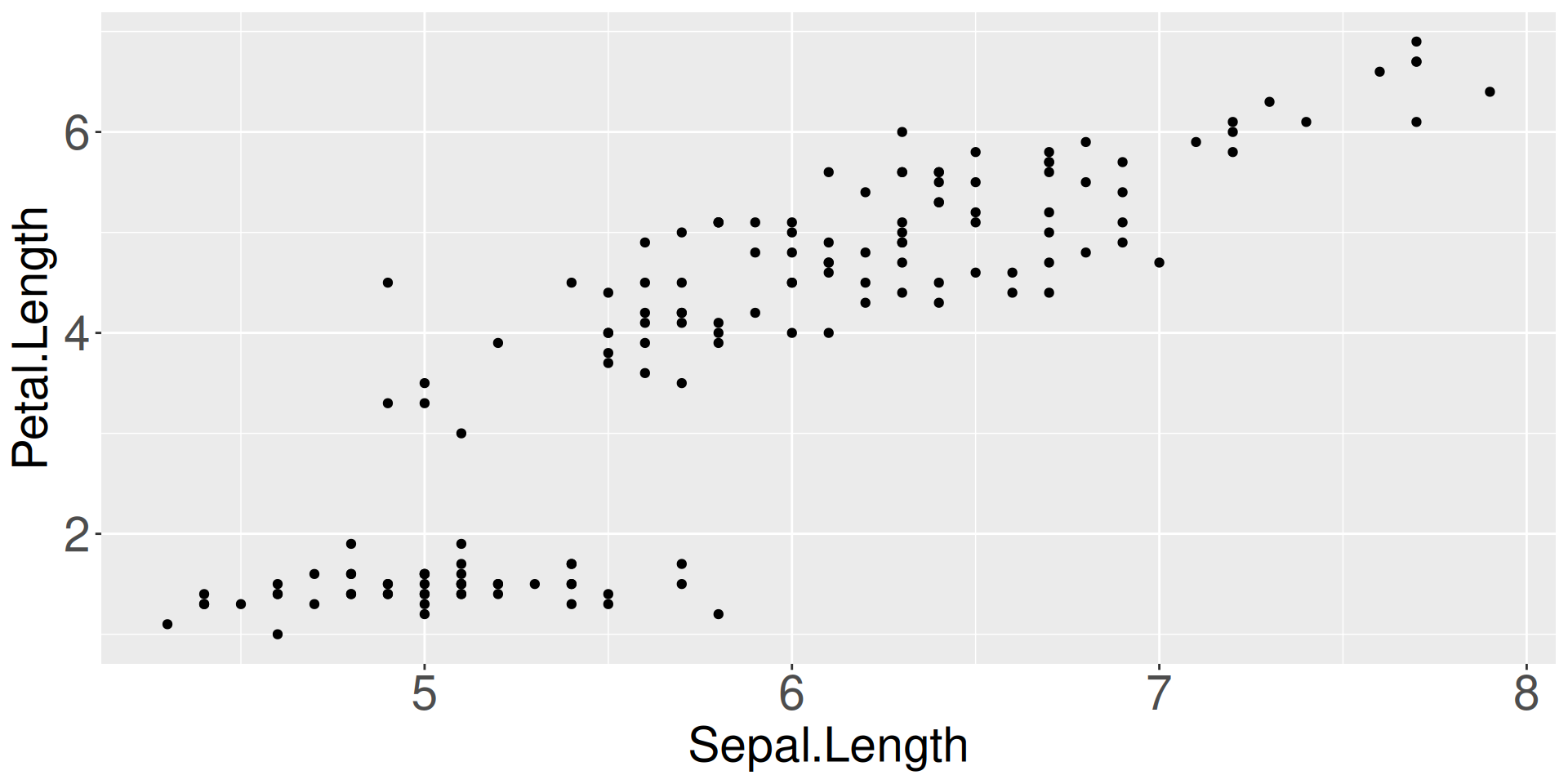

Add a geometric layer:

# geom_point() is used for scatter plots
base_plot <- p0 + geom_point()


base_plot

Use points for visualisation.

ggplot() creates a canvas to draw on. data contains columns fro the plot aes() matches columns of data to aesthetics of the plot. geom_point() adds point geometry.

Aesthetics - Color

The most common aesthetics: color, fill, shape, size, alpha (transparency), etc.

• Static aesthetics: a fixed value and apply to the whole layer

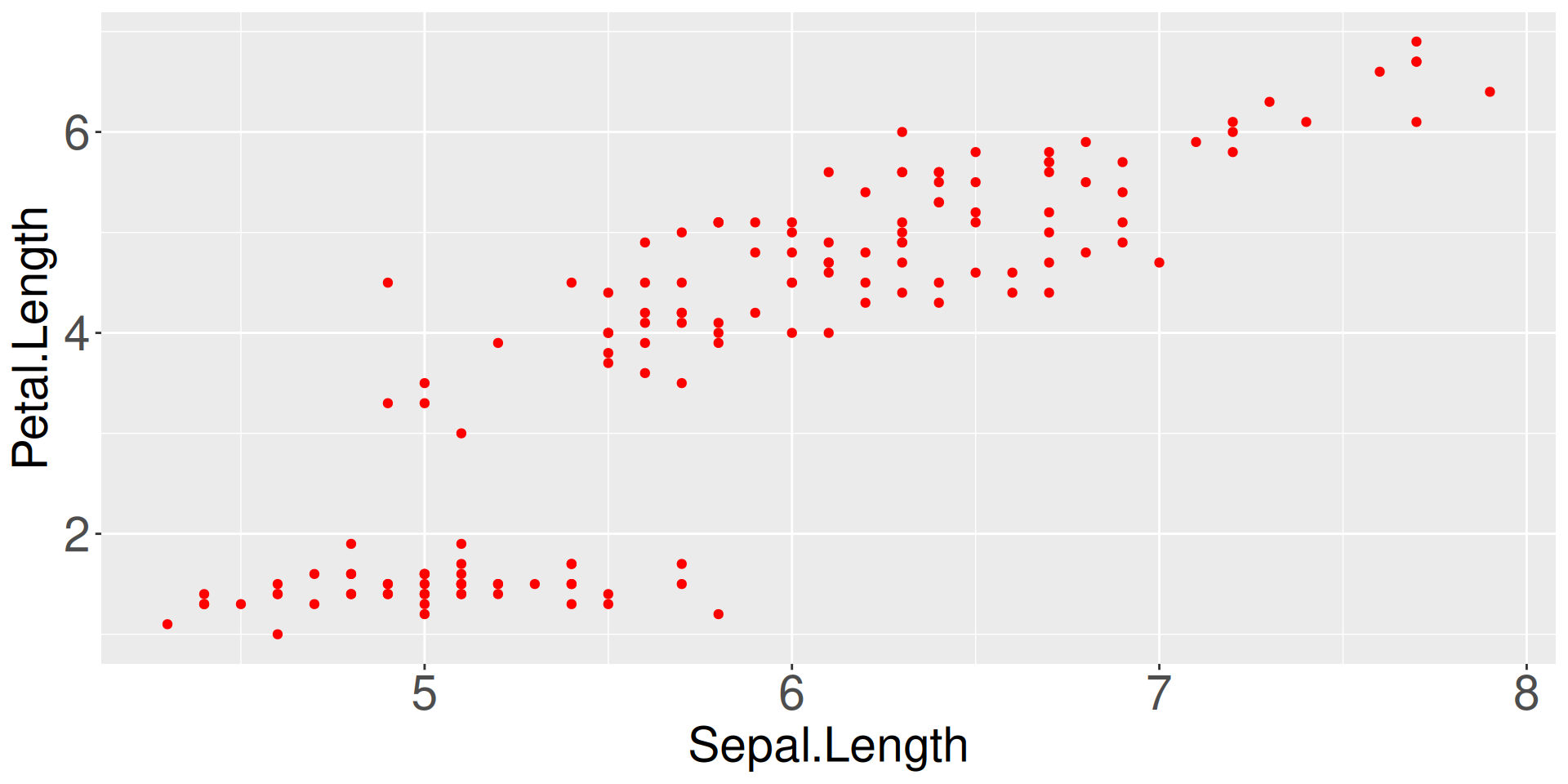

base_plot_red <- p0 + geom_point(color = "red")
base_plot_red

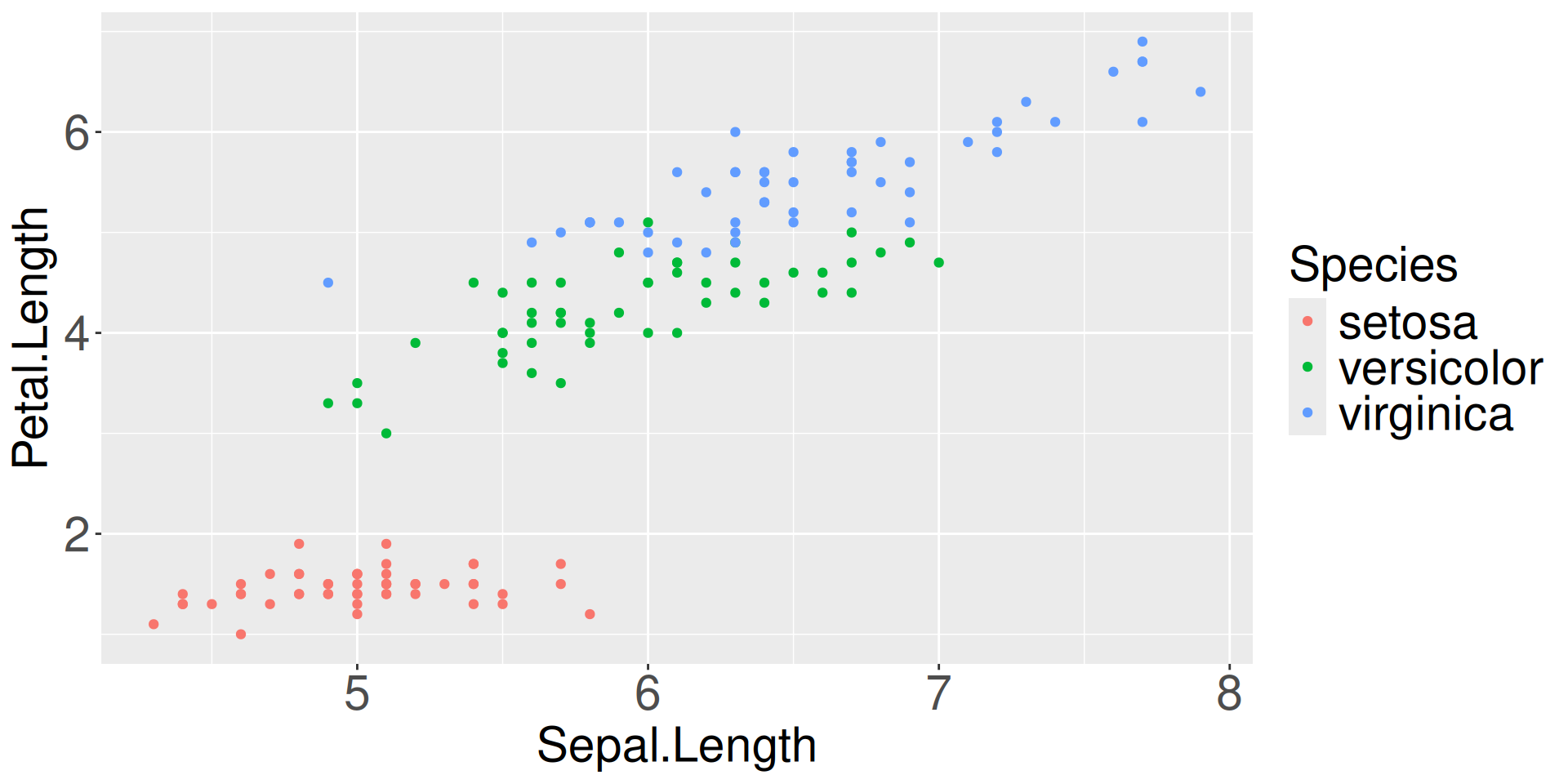

• Aesthetic mappings: visual preoperties that depend on data values (to be used in aes())

base_plot <- p0 + geom_point(aes(color = Species))
base_plot

Reference: https://ggplot2.tidyverse.org/articles/ggplot2-specs.html

Aesthetics - Shape

The most common aesthetics: color, fill, shape, size, alpha (transparency), etc.

• Static aesthetics: a fixed value and apply to the whole layer

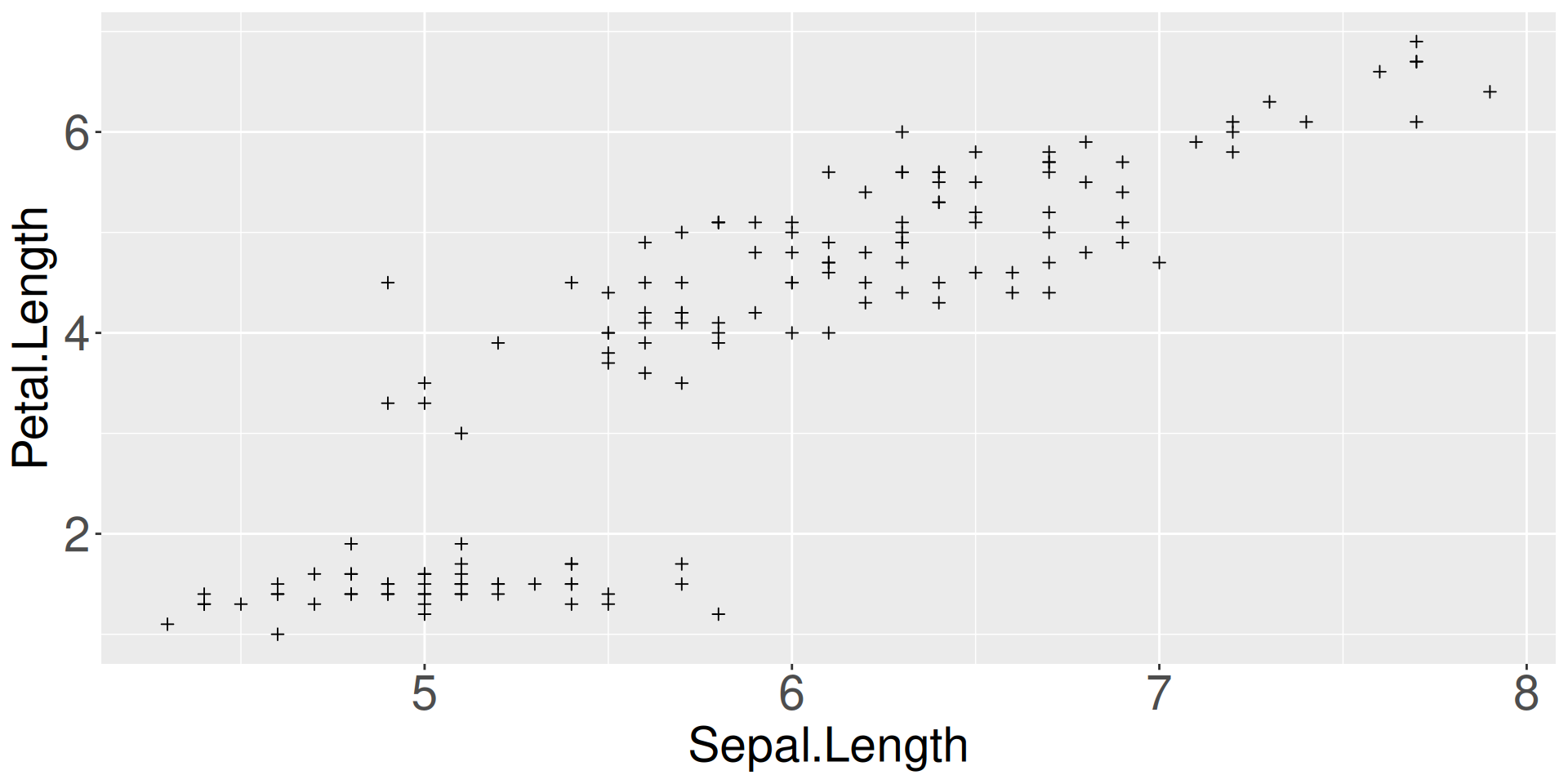

p0 + geom_point(shape = 3)

• Aesthetic mappings: visual preoperties that depend on data values (to be used in aes())

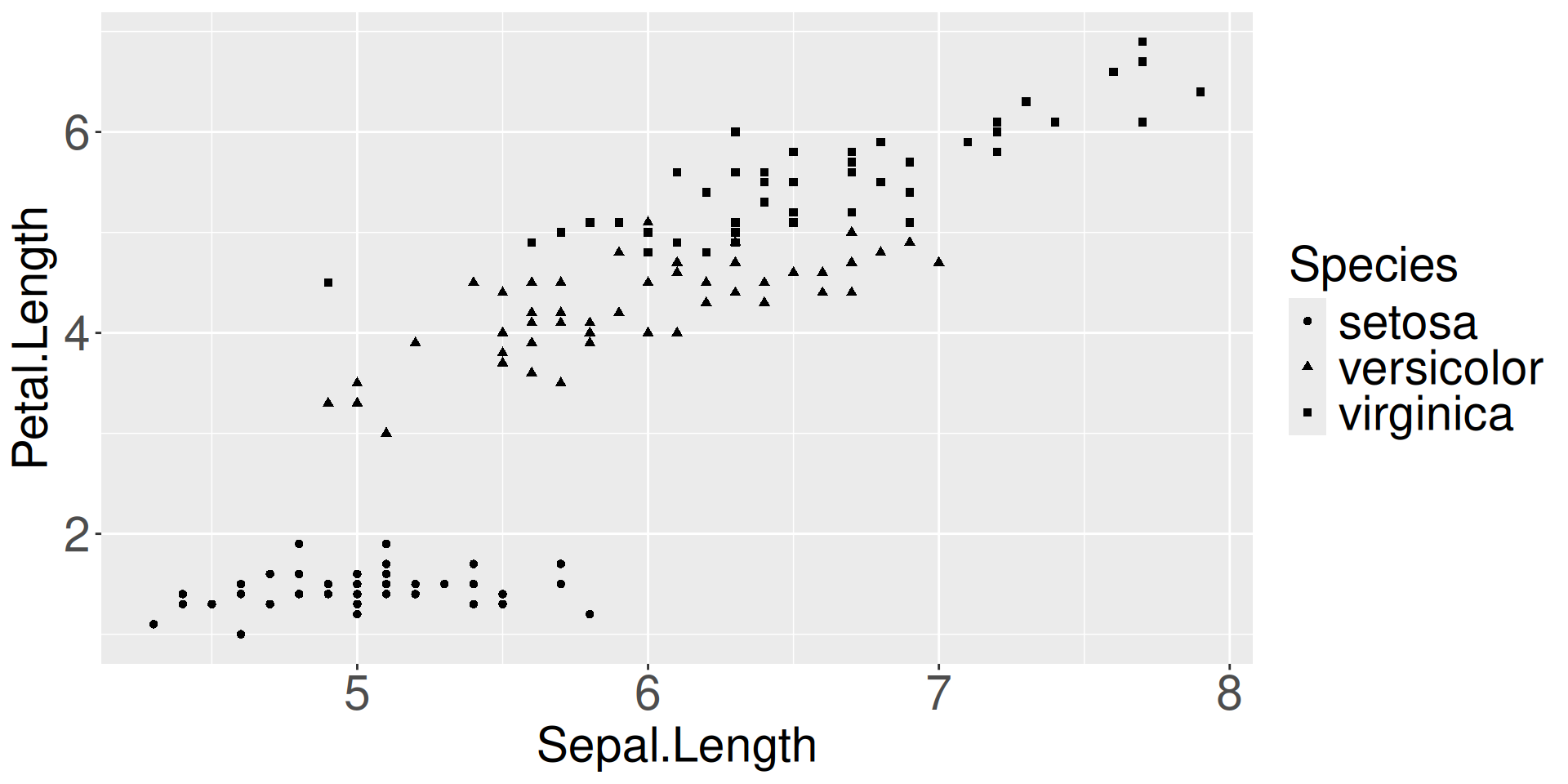

p0 + geom_point(aes(shape = Species))

Reference: https://ggplot2.tidyverse.org/articles/ggplot2-specs.html

Aesthetics - Size

The most common aesthetics: color, fill, shape, size, alpha (transparency), etc.

• Static aesthetics: a fixed value and apply to the whole layer

p0 + geom_point(size = 3)

• Aesthetic mappings: visual preoperties that depend on data values (to be used in aes())

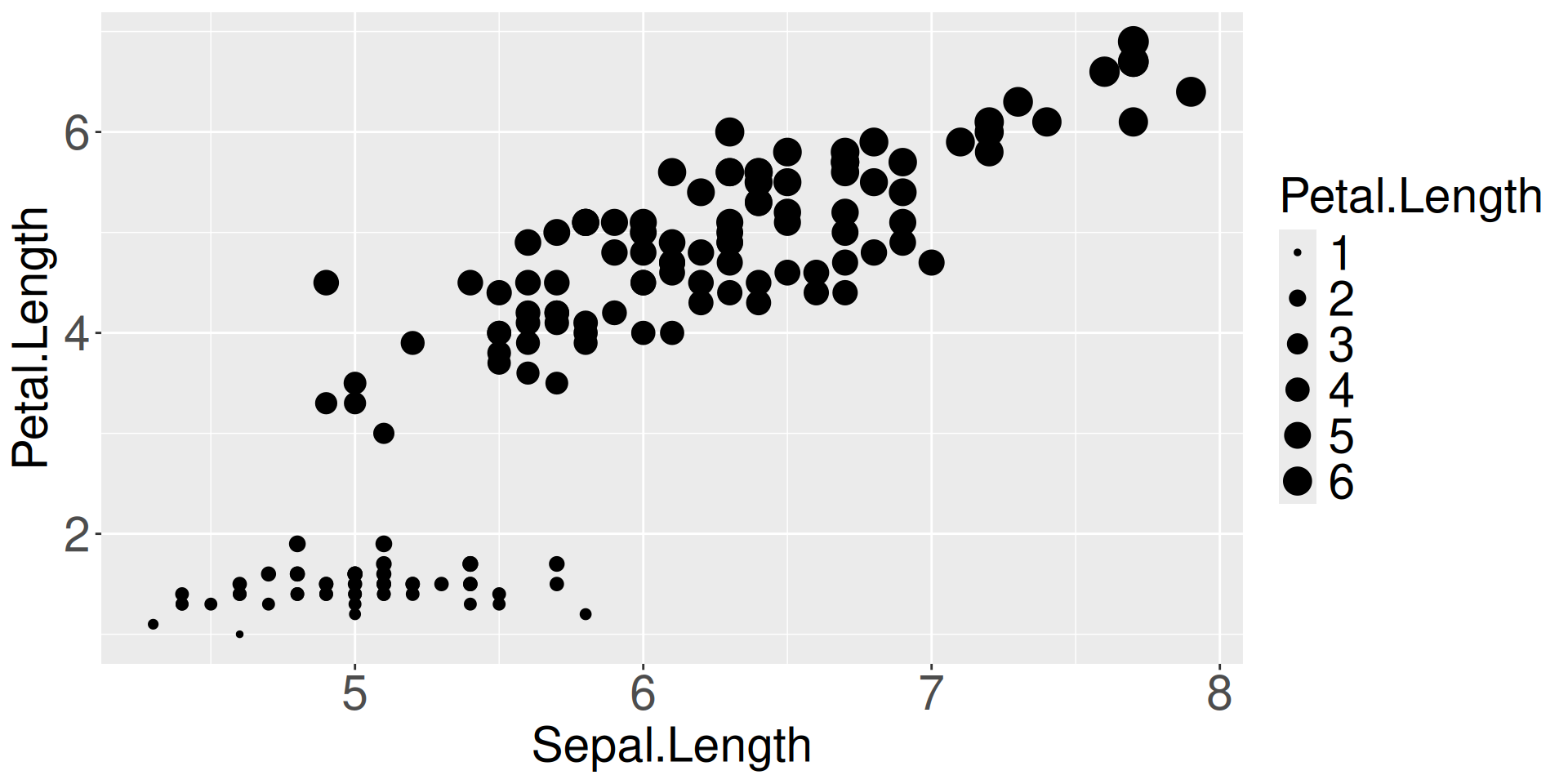

p0 + geom_point(aes(size = Petal.Length))

Reference: https://ggplot2.tidyverse.org/articles/ggplot2-specs.html

Aesthetics - Alpha

The most common aesthetics: color, fill, shape, size, alpha (transparency), etc.

With no transparency:

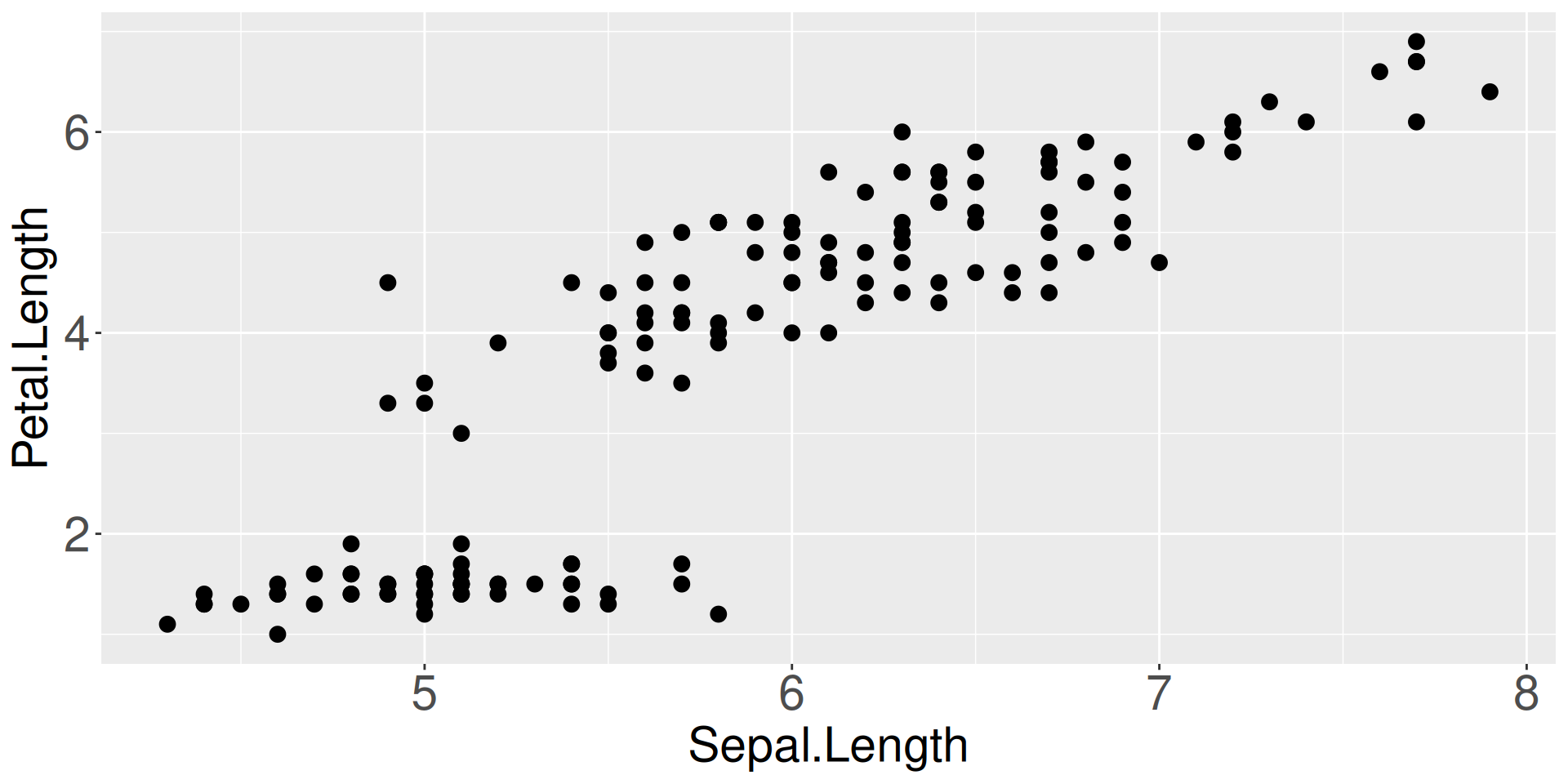

p0 + geom_point(size = 3)

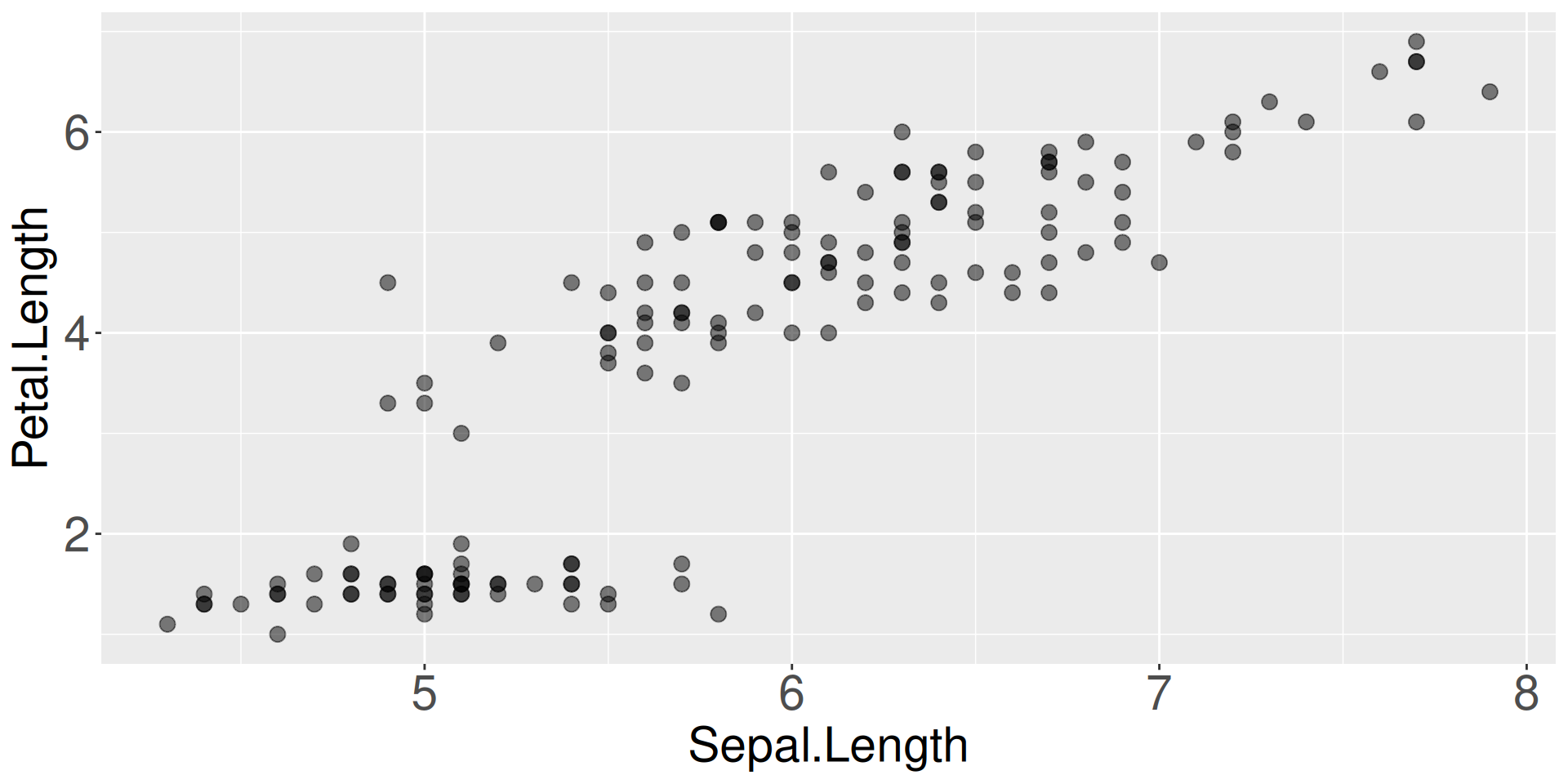

Use the alpha (between 0 and 1) parameter:

p0 + geom_point(size = 3, alpha = 0.5)

Reference: https://ggplot2.tidyverse.org/articles/ggplot2-specs.html

Labels (Axes - Titles - Legend)

base_plot

Use labs() to modify labels of plot, axes, legend.

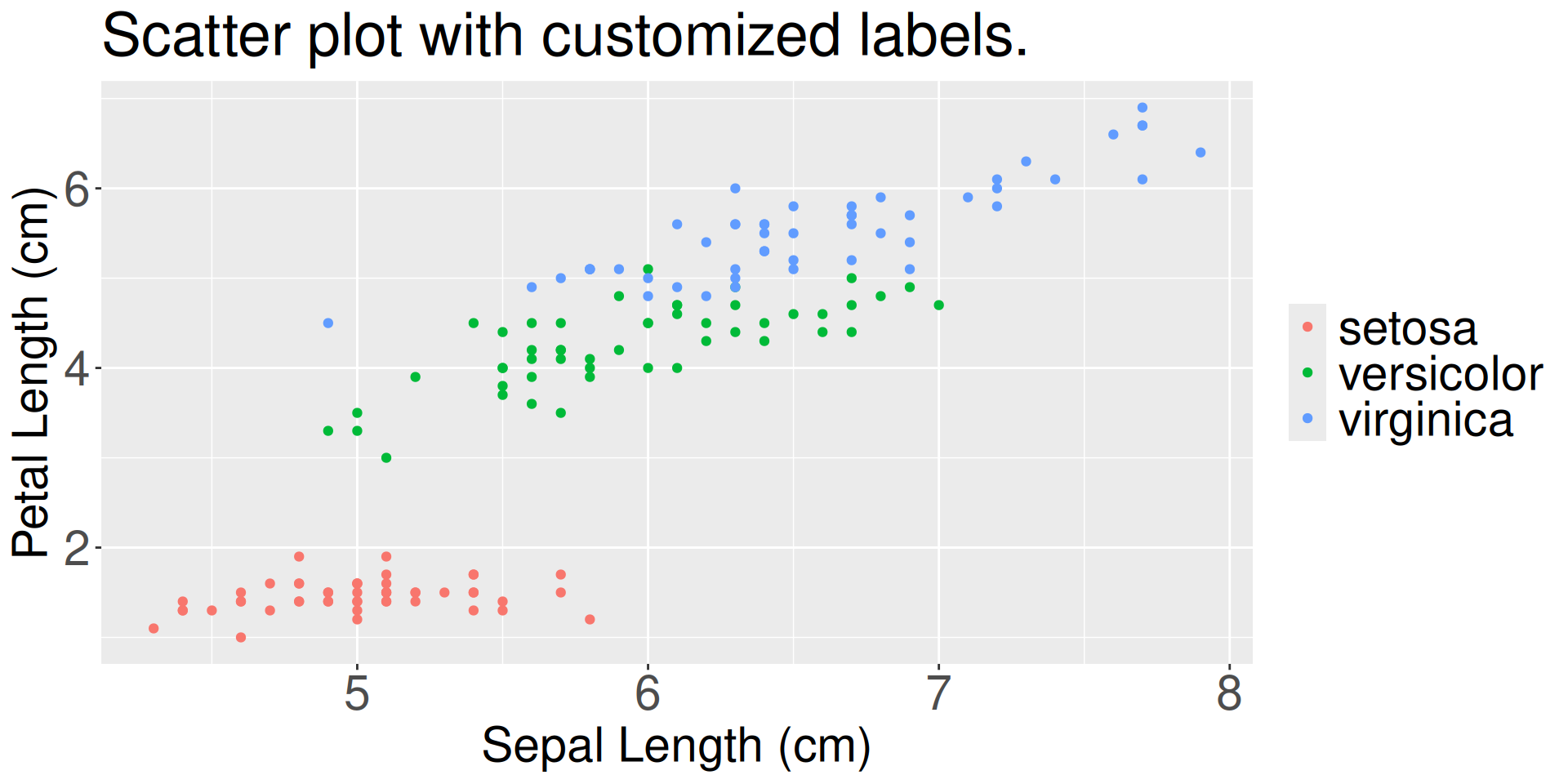

p_labs <- base_plot + labs(
  x = "Sepal Length (cm)",
  y = "Petal Length (cm)",
  title = "Scatter plot with customized labels.",
  color = NULL # remove legend title
)
p_labs

Add Other Layers

# the scatter plot with modified lables
p_labs

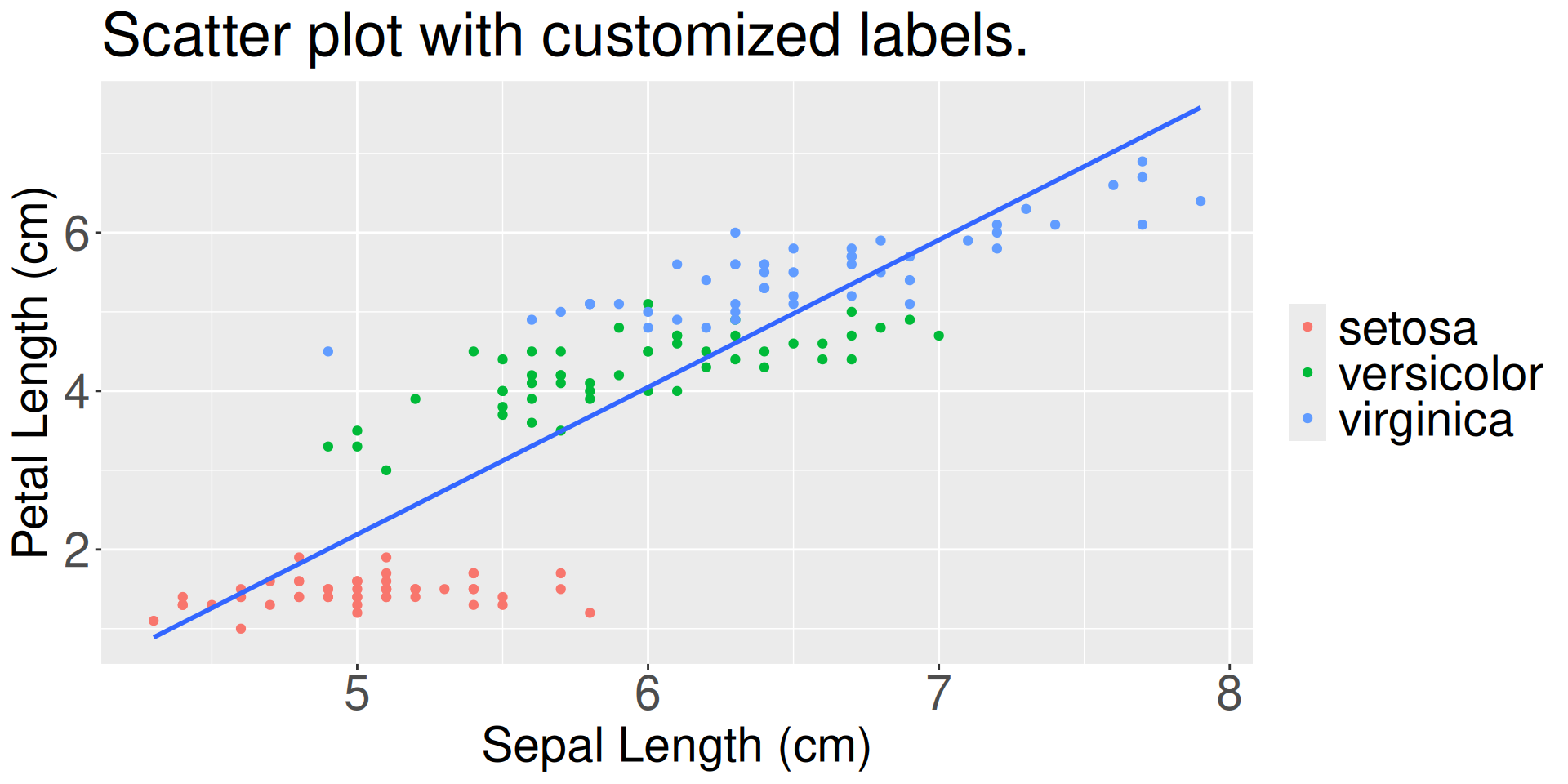

Add a linear regression line using geom_smooth():

p_regline <- p_labs + geom_smooth(method = "lm", se = FALSE)
p_regline

Each geom_*() function adds a new layer to the plot, just like stacking transparent sheets on top of each other to build the final image.

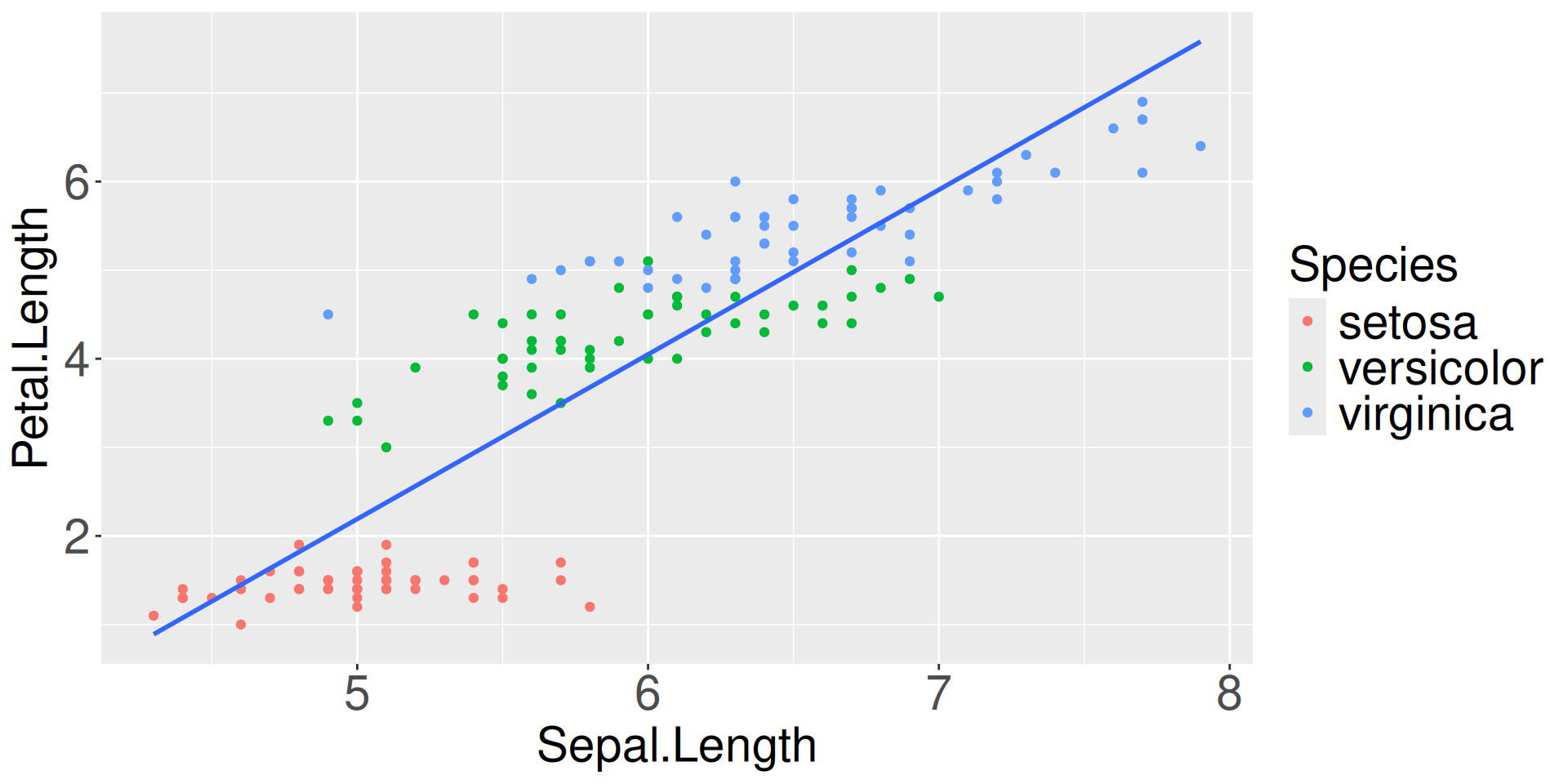

Aesthetic Mappings

ggplot(
  data = iris,
  mapping = aes(
    x = Sepal.Length,
    y = Petal.Length
  )
) +
  geom_point(aes(color = Species)) +
  geom_smooth(method = "lm", se = FALSE)

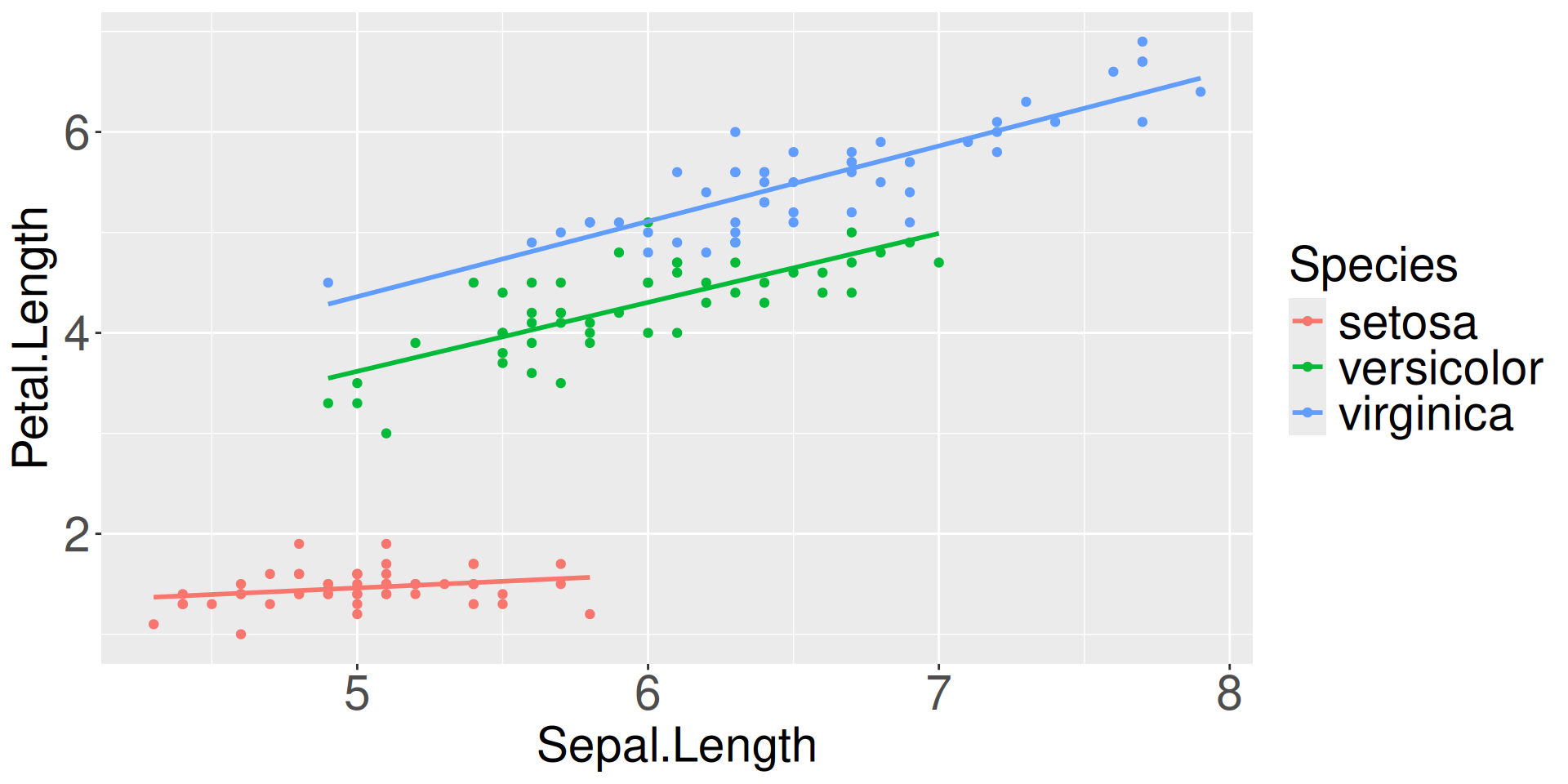

Compare the following code with the code on the left. What is different between the codes? What is different about the resulting graphs?

ggplot(
  data = iris,
  mapping = aes(
    x = Sepal.Length,
    y = Petal.Length,
    color = Species
  )
) +
  geom_point() +
  geom_smooth(method = "lm", se = FALSE)

aes() in ggplot() or in geom_*(), if multiple layers

Common Used Geometries (1)

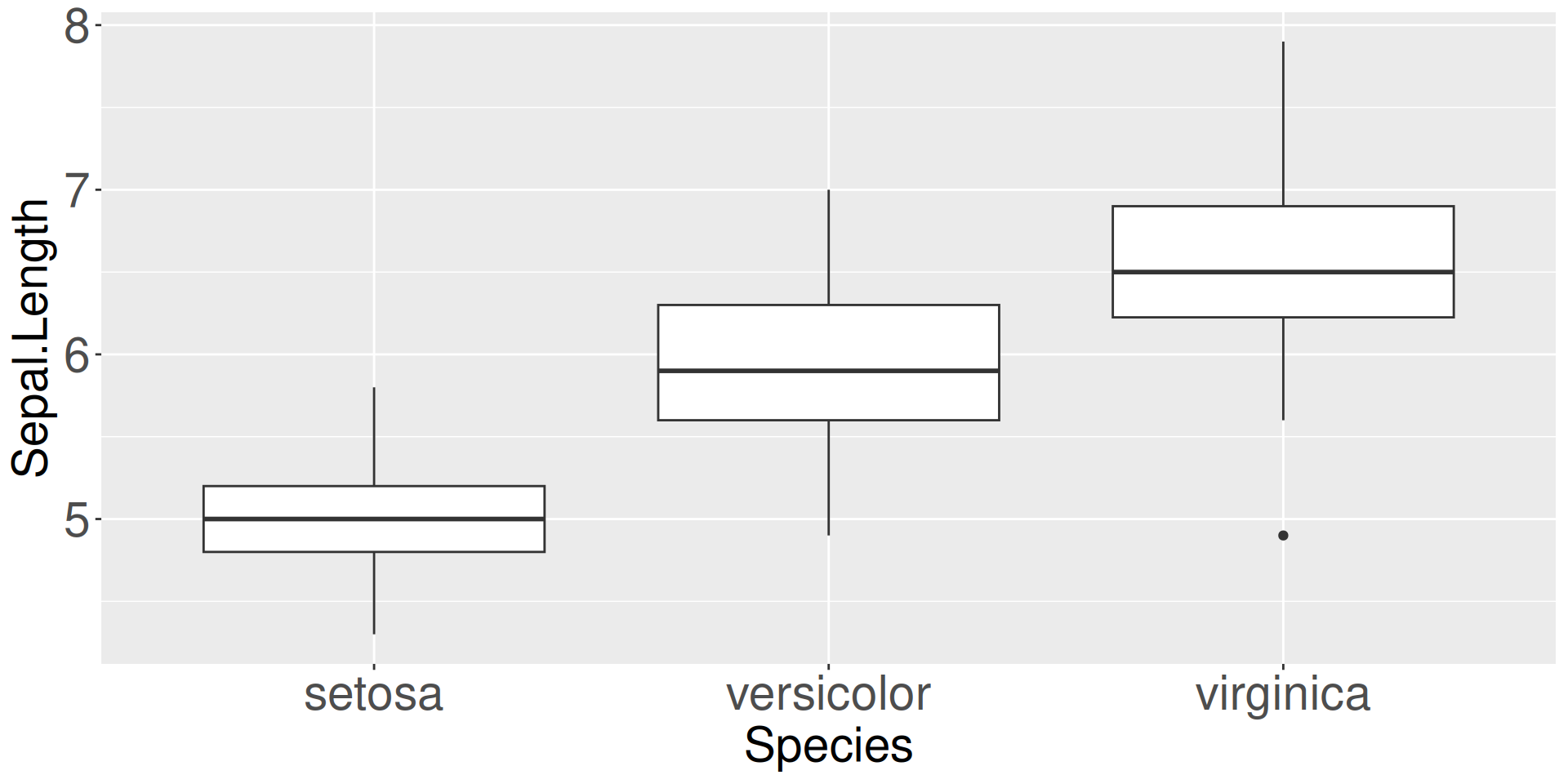

• Boxplot:

ggplot(iris, aes(x = Species, y = Sepal.Length)) +
  geom_boxplot()

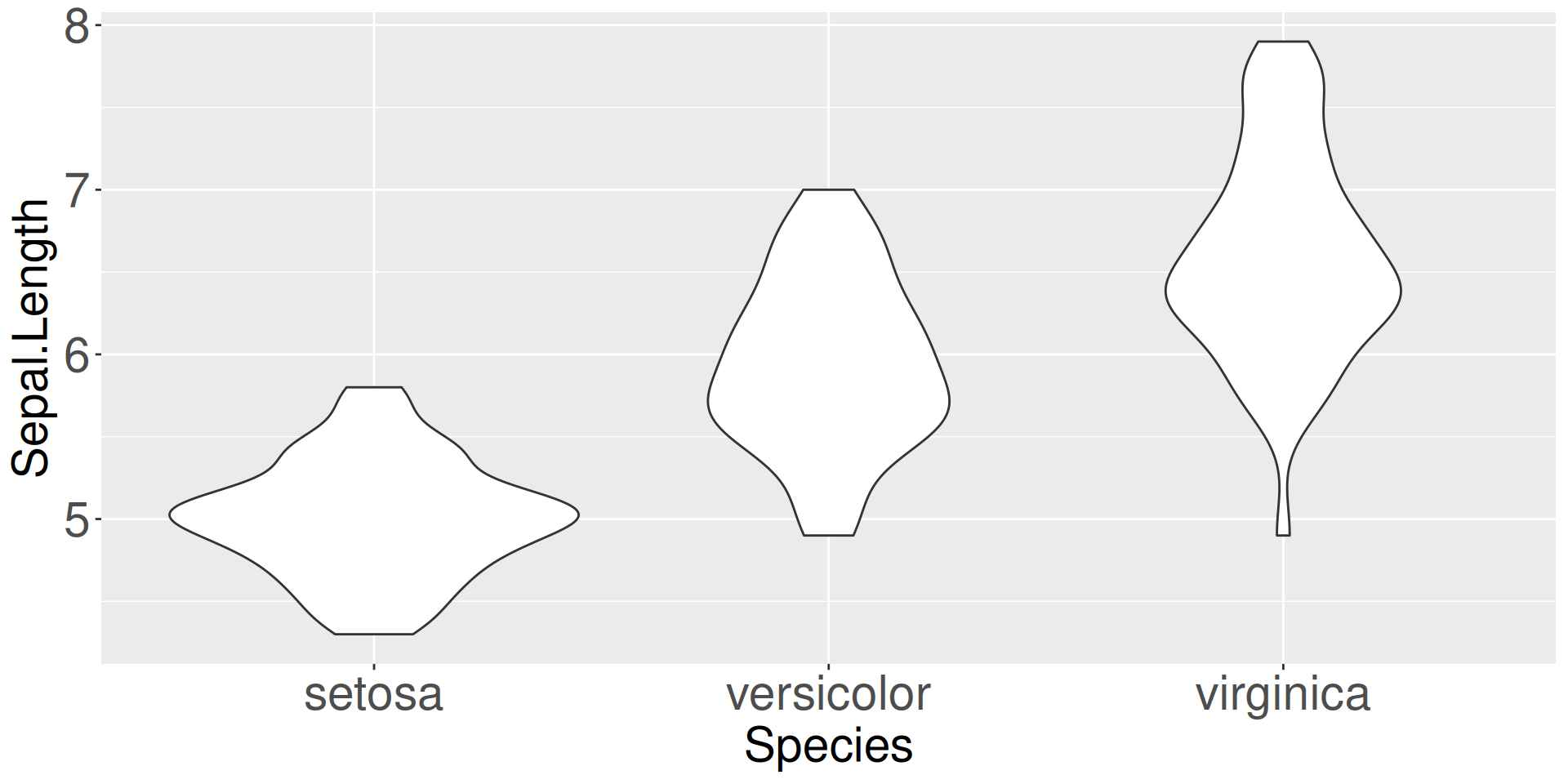

• Violin plot:

ggplot(iris, aes(x = Species, y = Sepal.Length)) +
  geom_violin()

Common Used Geometries (2)

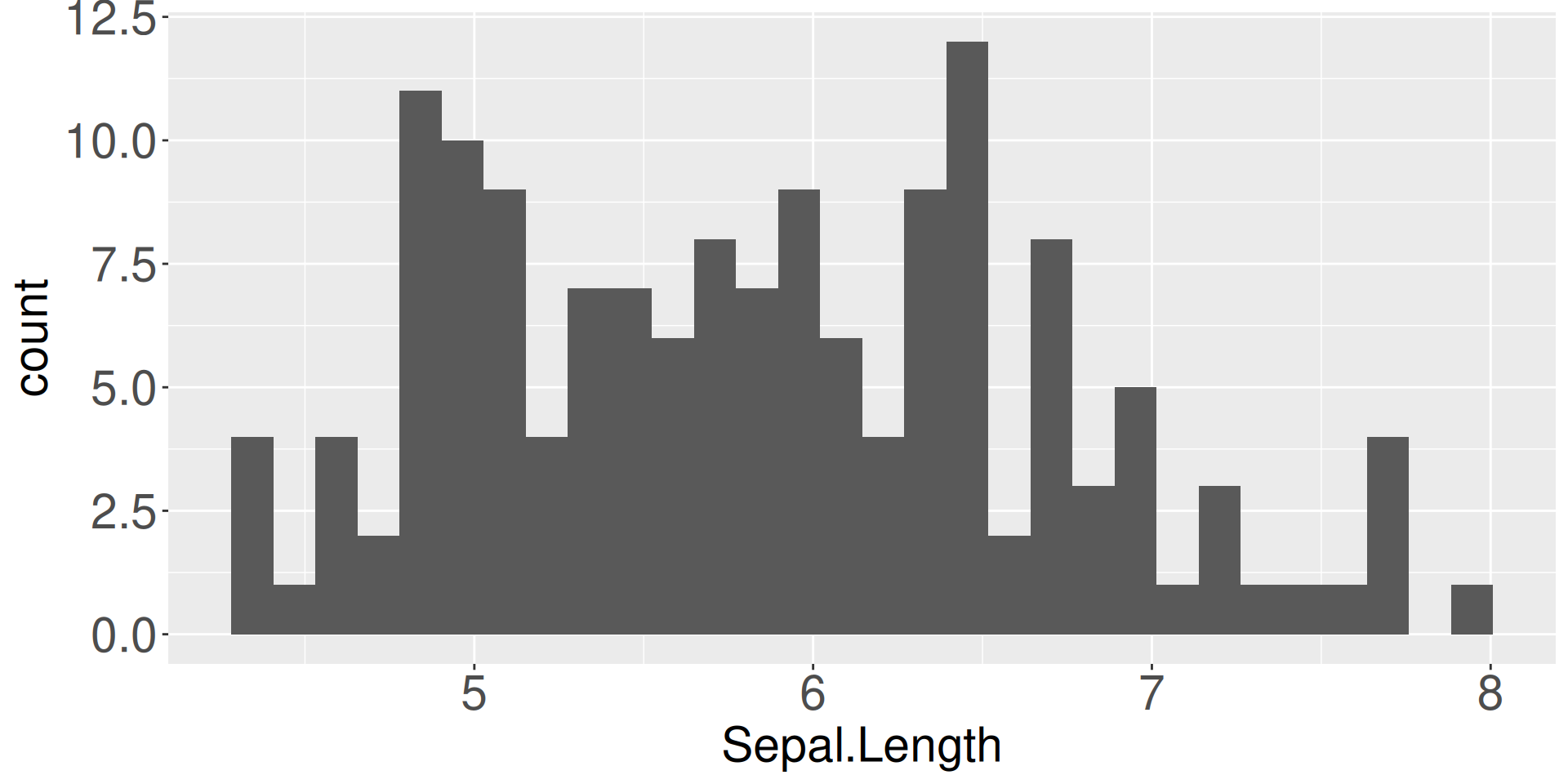

• Histogram:

ggplot(iris, aes(x = Sepal.Length)) +
  geom_histogram()

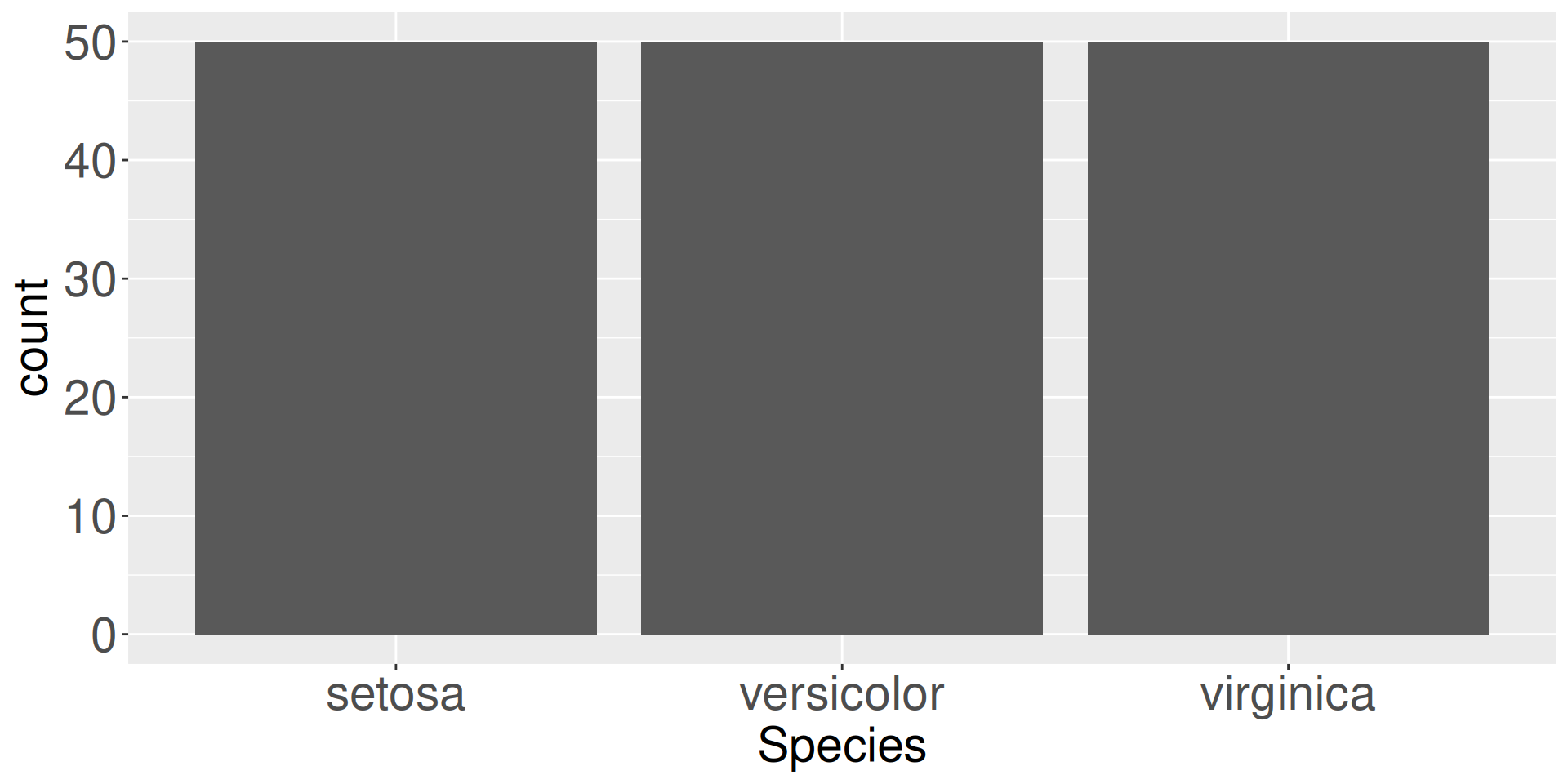

• Bar plot:

ggplot(iris, aes(x = Species)) +
  geom_bar()

geom_histogram() and geom_bar() only require one variable for the x-axis. The y-axis is automatically calculated.

Themes

• Built-in themes (theme_*()): theme_grey() (default),theme_bw(), theme_light(), theme_classic(), etc.

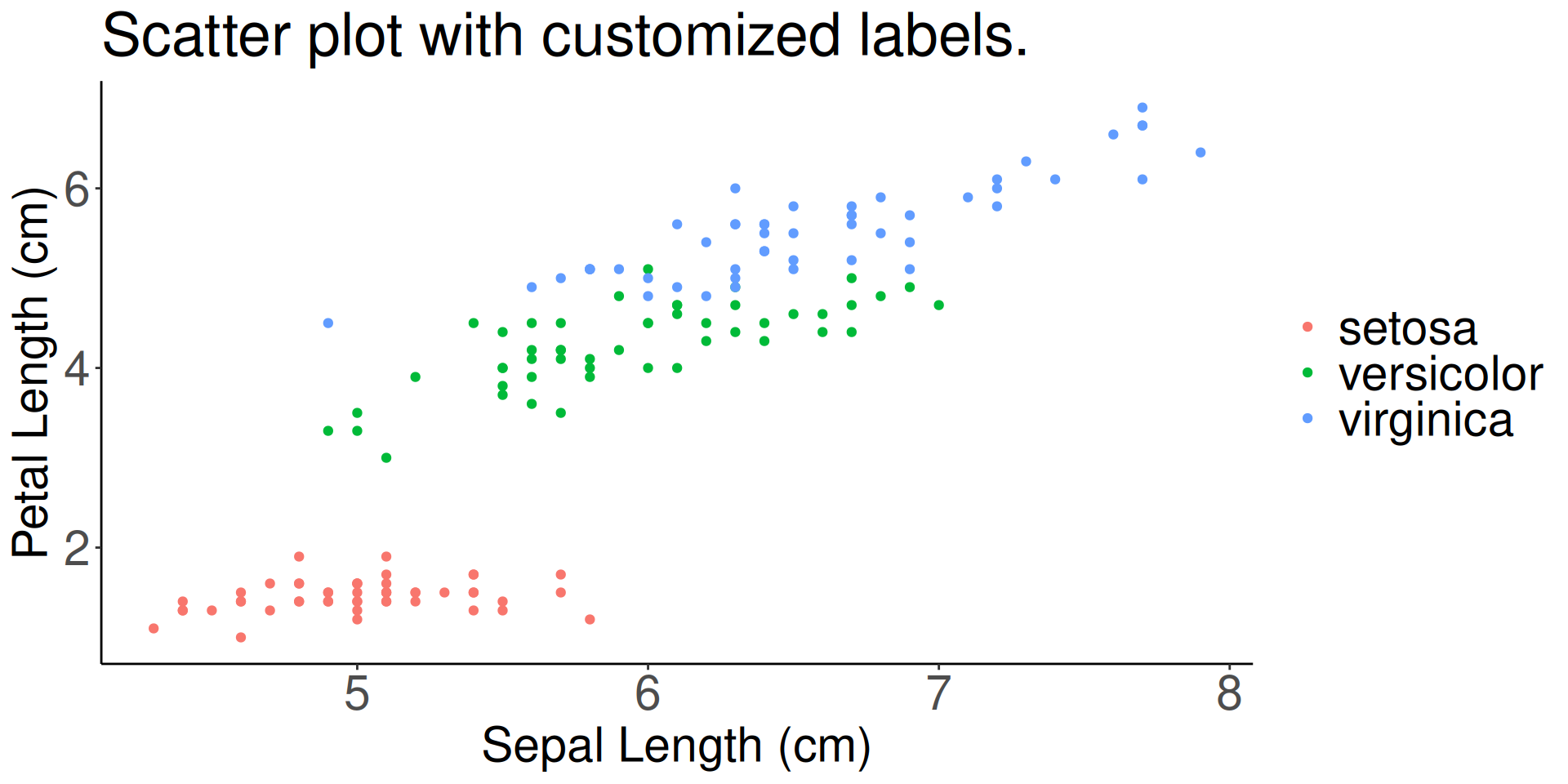

p_labs + theme_classic()

• Use theme() function to tweak elements, e.g.:

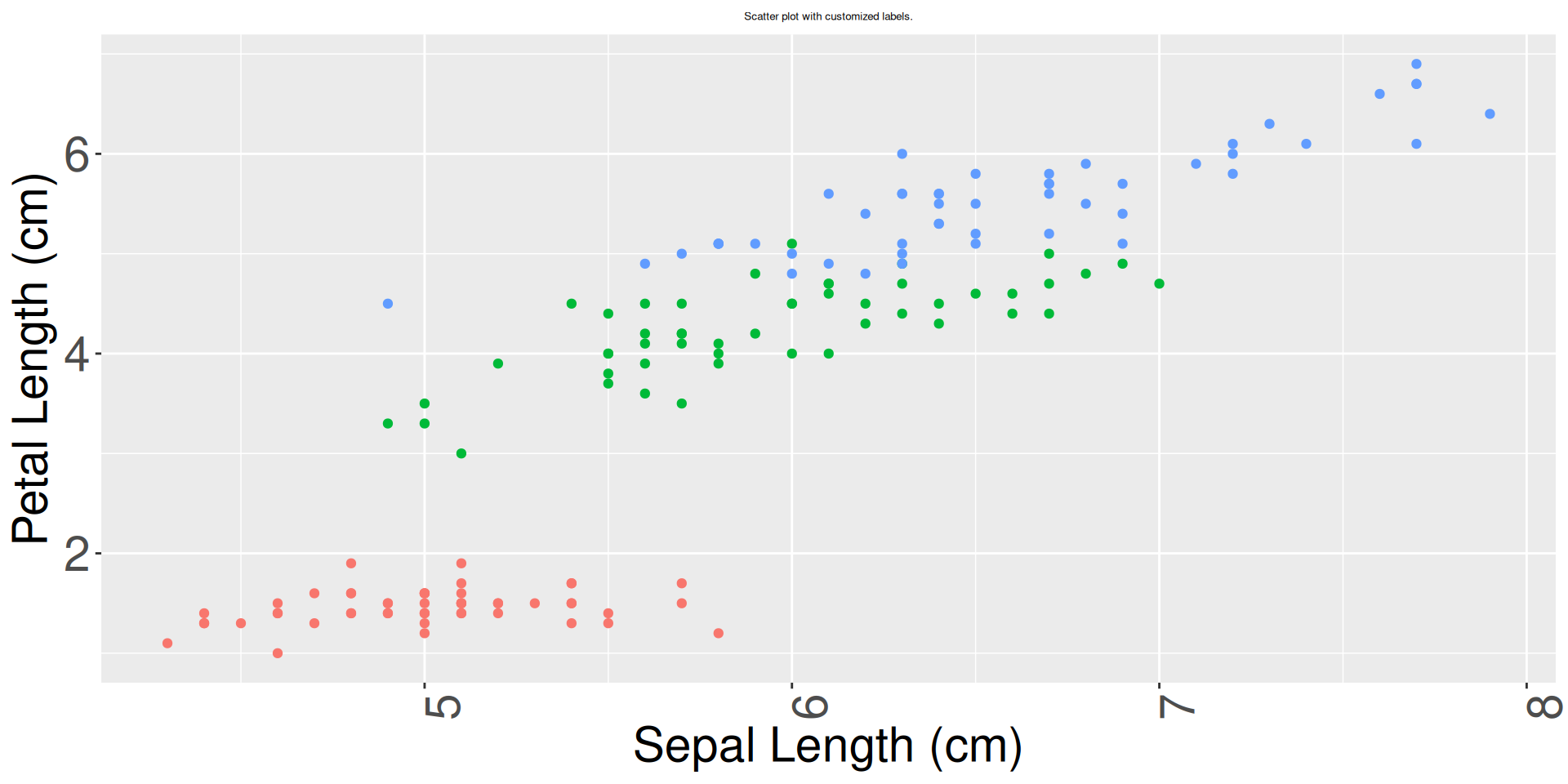

p_labs + theme(
  legend.position = "none", # hide legend
  plot.title = element_text(
    hjust = 0.5, # center plot title
    size = 5, # plot title size
  ),
  axis.text.x = element_text(angle = 90) # rotate axis' text
)

Saving Your Graphs

Use ggsave() to save plots in high resolution for publications.

ggsave(
  filename = "path/to/figure.png", # figure file name
  plot = last_plot(),
  # save by default the last figure,
  # you can provide the figure name to specify the plot to be saved.
  device = "png",
  # can be one of "eps", "ps", "tex" (pictex), "pdf",
  # "jpeg", "tiff", "png", "bmp", "svg" or "wmf"
  width = 6.3,
  height = 4.7,
  units = "in", # can be one of "in", "cm", "mm" or "px"
  dpi = 300 # plot resolution
)

Save the basic plot to the outputs folder in your project. Check the saved figure via the Files panel in RStudio.

ggsave(
  filename = "../outputs/basic_scatter_plot.png",
  plot = base_plot,
  width = 5, height = 5, units = "cm", dpi = 150
)

Let’s Practice !

Today’s Goals

• Install new R packages
• Create basic plots with ggplot2
